Single picture of the brake cylinder plug
by pfarber » Wed Oct 14, 2009 3:13 pm

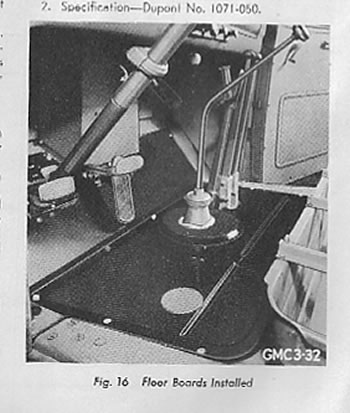

Every CCKW has a hole in the cab for easy access to the check the level of the brake fluid in the master cylinder.
The early TM-10s have a picture of it, the later TM9's omit it.. even the SNL doesn't have a pic of it.
Not that helpful.. but there it is in all its glory.
The early TM-10s have a picture of it, the later TM9's omit it.. even the SNL doesn't have a pic of it.
Not that helpful.. but there it is in all its glory.
