Spare tire frame lock nut.

Postby pfarber » Sat Jan 30, 2010 2:49 pm

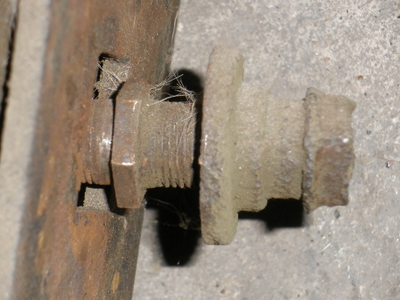

The Spare tire carrier is held 'up' by a bolt that goes through the frame. This bolt goes through the frame, but not just a hole. Since none of the TMs show any parts for the carrier, I have not idea what its called. But here it is:
