General Motors T.U.P. Assembly Plant Operations

[pfarber]

HOLY CRAP! An OFFICIAL GMC manual on how the TUP assembly lines were operated. I mean all the way down to the a list of every tool needed to assemble a CCKW! Yes.. I have it! I tried to not let the tears of joy stain the paper as I was making copies... this thing was an absolute gold mine to read.

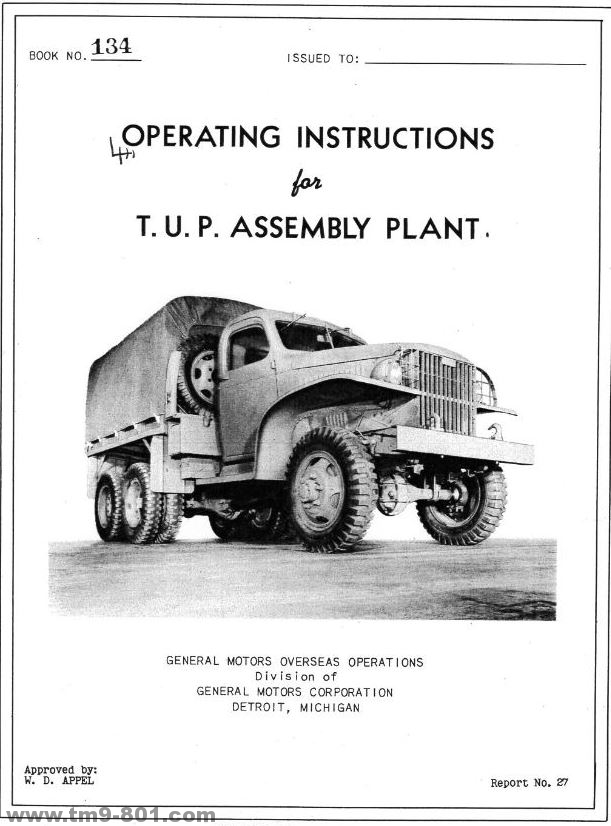

Here's the cover:


I'll be collecting all the pages and posting them as a PDF file.. but its a BIG manual. I have some of the better (not already in a TM) figures ready to post... but they are low quality.... first pass wasn't all that great.

[pfarber]

HELLS YES! Operation E, TUP assembly. Here's a list of EVERY TOOL NEEDED TO ASSEMBLE A CCKW FROM A T.U.P.!

I will add this to the Technical Manuals section once the entire book is scanned.

[pfarber]

More tidbits:

• Yard is to hold 2500 complete TUP packs (5,000 cases total)
• 10hr Workday, 6 days a week
• Local labor is to only be expected to run at 40% efficiency
• Each line was to produce 100 trucks per day.
• Each line had 10 Assembly Stations, each line to produce 10 trucks per hour

That means EVERY 6 MINUTES a CCKW was to roll off each line and sent into service.

[pfarber]

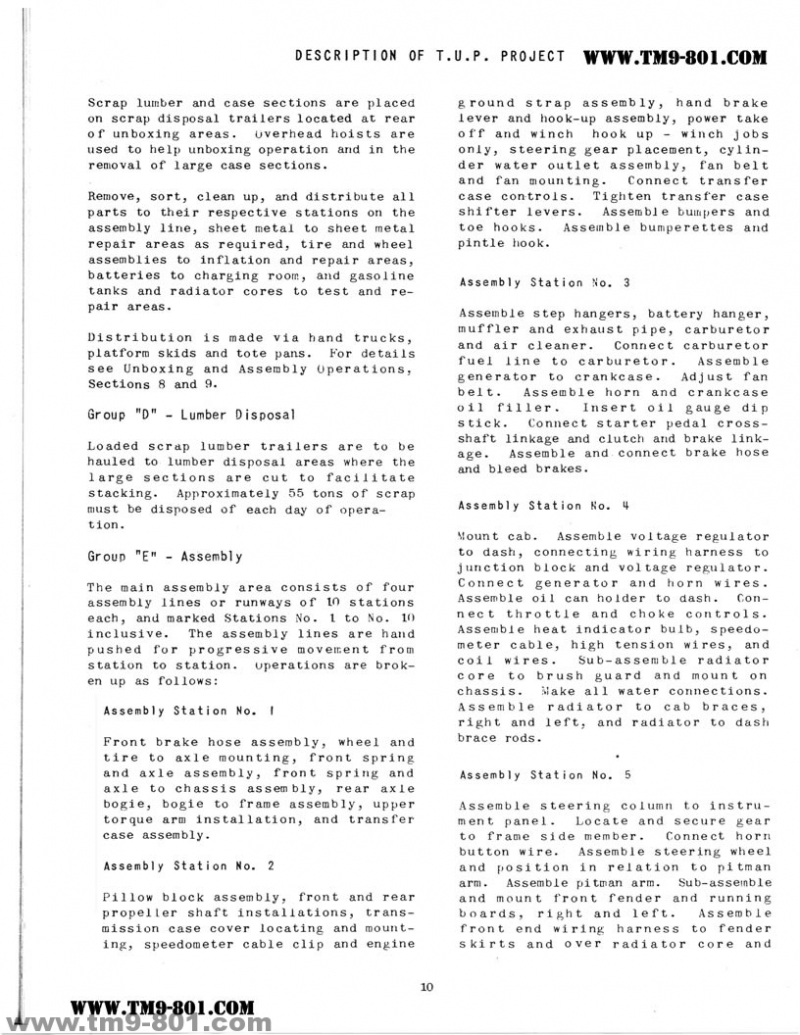

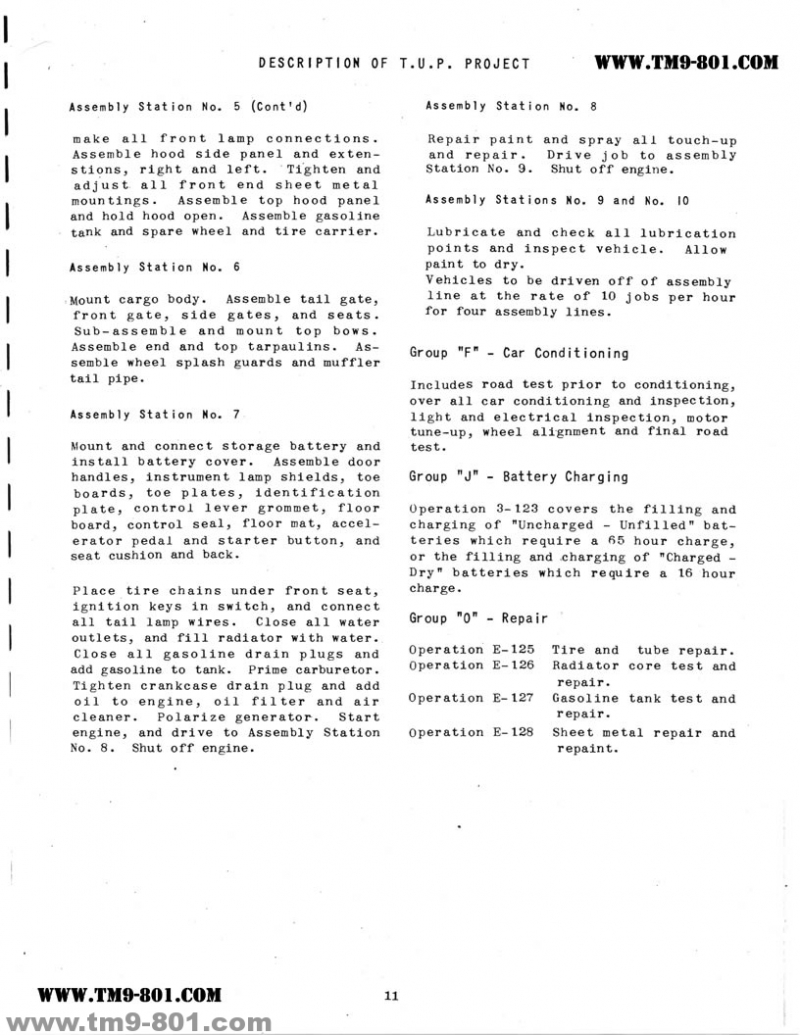

Here are the 10 Assembly Stations that make up an assembly line for CCKWs at a TUP assembly plant. "Group E" is the moneymaker. You'll note that there are other groups that concern pre- and post- assembly tasks.

The book goes into great detail of what happens at each station, and the tool list above is also keyed to each step.

10 Step TUP stations.jpg (188.82 KiB) Viewed 7983 times

10 Step TUP stations_0001.jpg (137.21 KiB) Viewed 7983 times
