Brakes and vac

Postby pfarber » Wed Apr 10, 2013 11:34 am

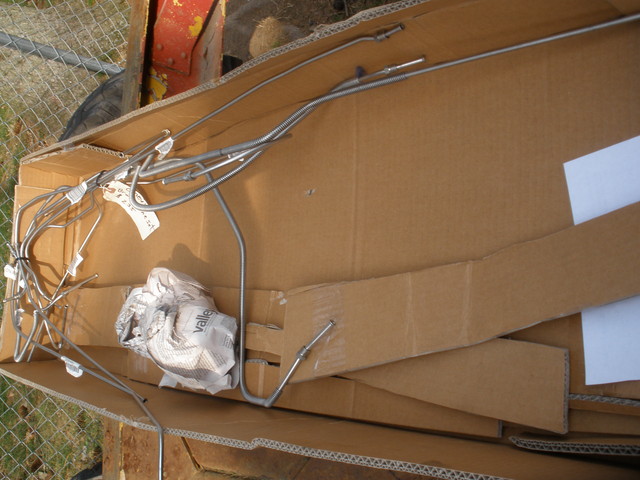

Got the new brake line set from VoV. The old lines were hand bent, and the stone guards were rusted.. for $235 that's not a bad deal.



The ball of paper was the master cylinder rebuild kit.

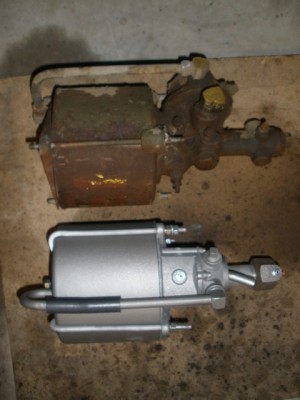

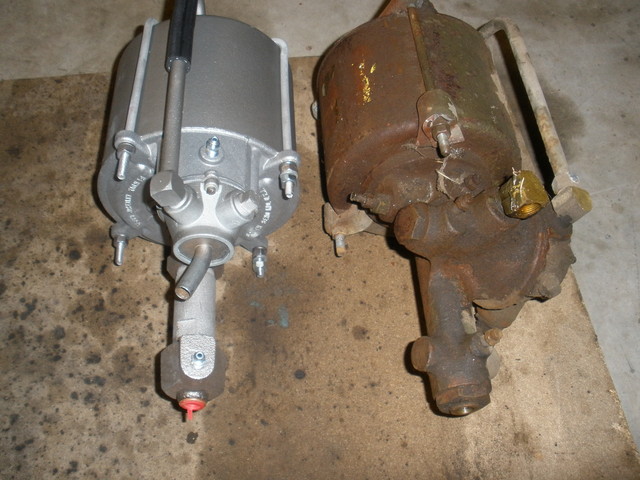

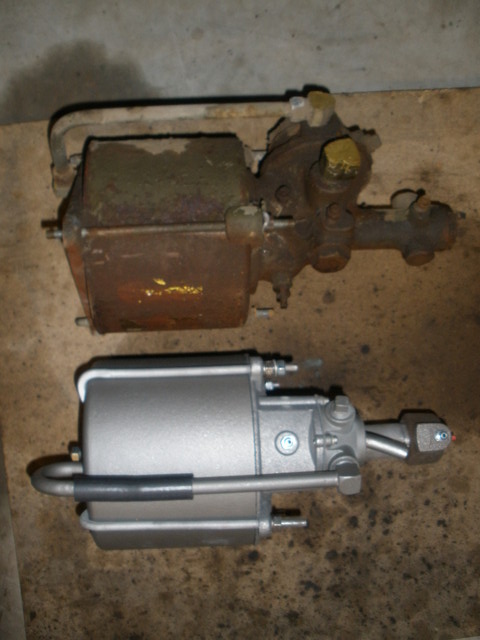

Here's the old SERIES II vac next to a new SERIES III vac. Other than a simplified control valve they appear to be identical (size wise). Some of the hookup locations are different... nothing insurmountable.




The place I got the vac from included a rough hookup diagram and an exploded view for parts ID. May have to fab up a bracket or two.. no biggie. Lots of 1/8th in steel laying about.
