Typical 50's era starter. In good shape, just a bit weathered.
- rs_DSCN0345.jpg (127.07 KiB) Viewed 33086 times

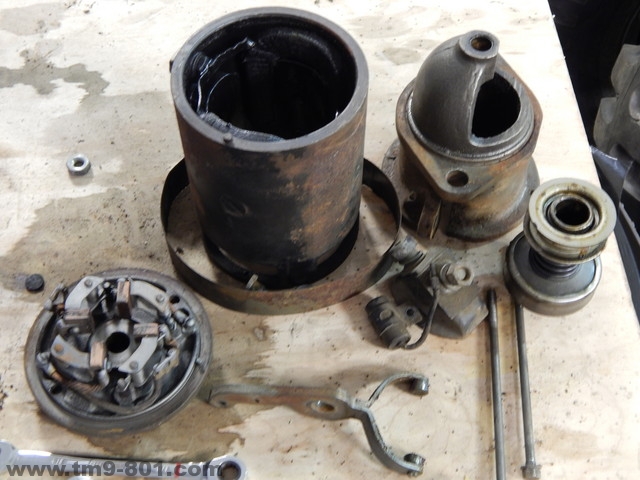

Taken apart.. only three bolts held everything together. Quite easy to break down.
- rs_DSCN0349.jpg (144.39 KiB) Viewed 33086 times
Brushes take out so I can clean/paint it. Two brushes connected to the field coils, two to the frame.
- rs_DSCN0355.jpg (168.28 KiB) Viewed 33086 times

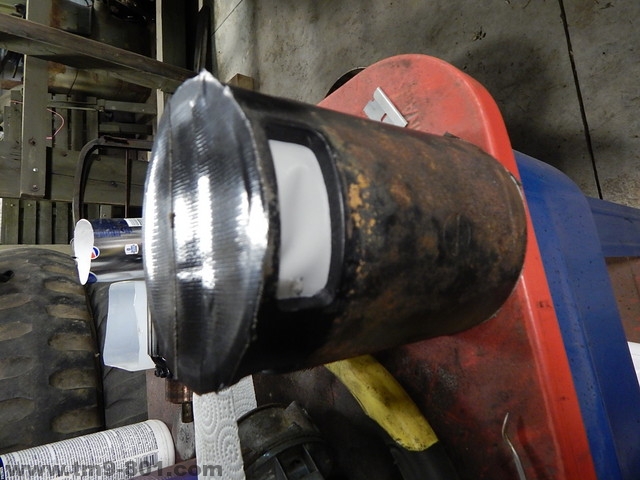

Body taped up. Since the coils were still in it (I didn't want to unsolder anything) this was required. Black Gorilla tape is essential for masking parts to be sandblasted.
- rs_DSCN0361.jpg (142.18 KiB) Viewed 33086 times

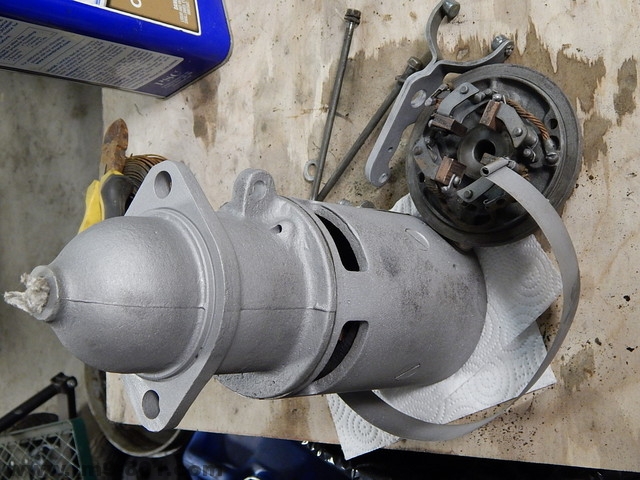

All the parts blasted. I just held the base in my hand.
- rs_DSCN0362.jpg (159.5 KiB) Viewed 33086 times

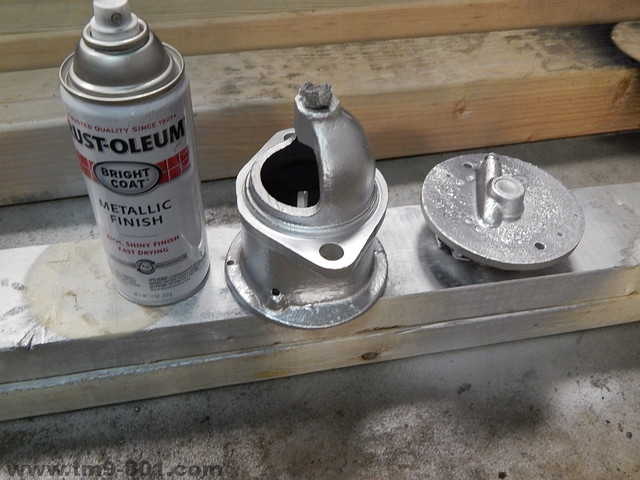

I decided to paint the cast iron ends Rustoleum Aluminum. Its a bit shiny, but gives it a nice look. I will be using this paint on the T-2 fuel filter bowl... it really looks like cad plating.
- rs_DSCN0363.jpg (144.57 KiB) Viewed 33086 times

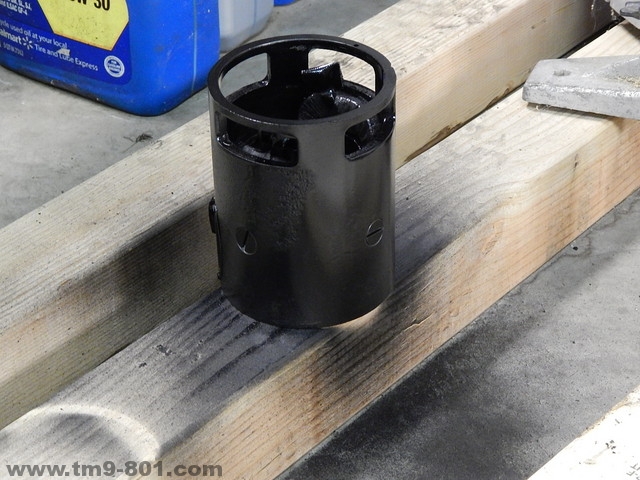

Body got Rustoelum Gloss Black (kinda close to the black lacquer used originally. The inside of the body was VERY glossy).
- rs_DSCN0364.jpg (154.81 KiB) Viewed 33086 times

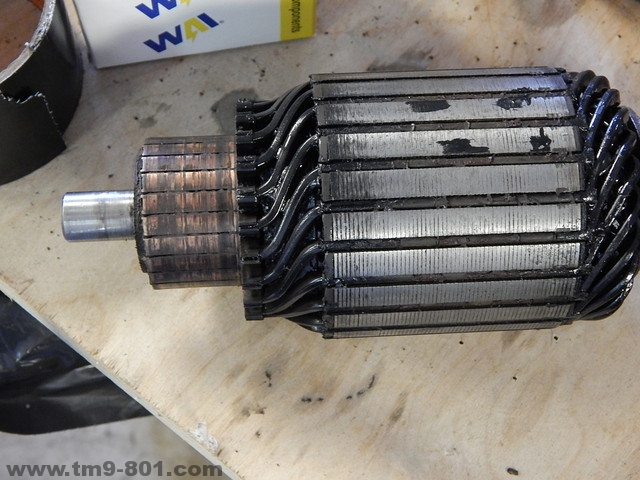

The only maintenance required was to clean the commutator.
- rs_DSCN0366.jpg (153.38 KiB) Viewed 33086 times
After being cleaned off with the stones I have
- rs_DSCN0367.jpg (149.29 KiB) Viewed 33086 times
Then back into the base. It was easier to put the brushed in, then place the rotor this way. All I had to do was pull back on the brushes and let them catch the commutator, then do the other two. Fell right into place.
- rs_DSCN0368.jpg (155.32 KiB) Viewed 33086 times
New switch, installed on the bell housing. Waiting for the paint to dry was the longest part. I started when the temp was to cool and paid for it simply waiting for it to dry.
- rs_DSCN0370.jpg (153.48 KiB) Viewed 33086 times
