Open cab wiper tubing and hoses

Post by pfarber »

Your CCKW is gonna need vacuum to make the wipers work.

The hoses used are 2 2x3/8ths on either side of the Y adapter. And 2 6x3/8ths for the motor to the manifold.

The Y splitter is brass (I have two, and both are brass).

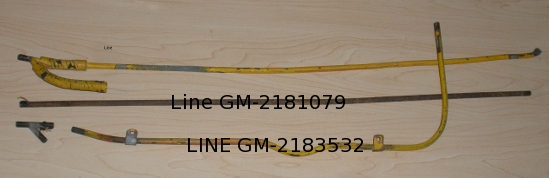

GM-2183532 is what runs up the left side of the windshield. The hump is clearance for the inner windshield adjusting bracket.
