Chassis clips for brake/fuel lines
Posted: Wed Sep 04, 2013 9:18 am
by pfarber
Evidently this is not a GM part any more. None of the usual vendors had it (Jim Carter, Classic Chevy).
1/4in diam brake 'single line' clip - brake lines
http://inlinetube.com/clips%20brake%20& ... CLP106.htm

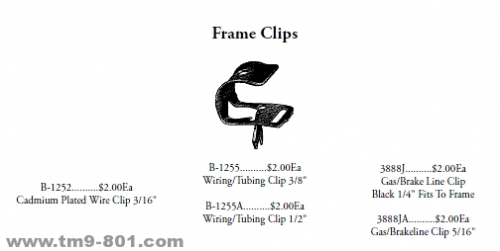

Restoration Specialties lists these:
- clip.PNG (57.29 KiB) Viewed 42726 times
http://www.restorationspecialties.com
Re: Chassis clips for brake/fuel lines
Posted: Wed Sep 04, 2013 11:13 am
by pfarber

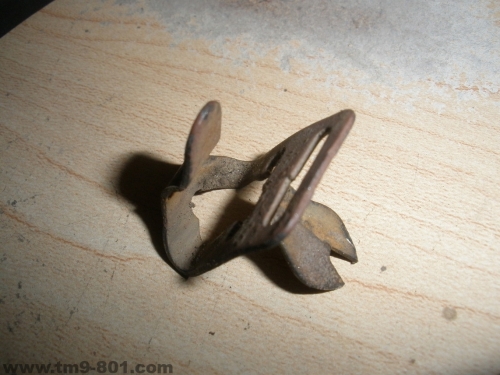

Seems like the G506 has its own special brake line clip.
These type are on all 3 chassis I have.. so its not a fluke/random replacement
 - rP9040184.jpg (144.91 KiB) Viewed 42724 times
|
 - clip2.PNG (8.58 KiB) Viewed 42724 times
|
The tang that comes up.around the line is thinner and comes to a point. None of the clips I have found yet duplicate this.

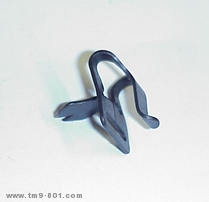

There was a SMALL glimpse of hope from Americian Classic Truck Parts PN FA-112. It lists as a 1/4 inch fuel/brake line clip:
- clip3.PNG (23.36 KiB) Viewed 42724 times
It IS a dead on identical part.. discontinued
Re: Chassis clips for brake/fuel lines
Posted: Wed Sep 04, 2013 11:40 am
by pfarber
It seems that the GM J-style clip is the name.. there is a SMALL difference though:
GM J-style clip
http://www.getdiscbrakes.com/rsclp37
 - clip4.PNG (32.33 KiB) Viewed 42723 times
|
 - RRP9040184.png (37.22 KiB) Viewed 42723 times
|
The two small circular holes on the side of the clip are missing. Other than that it seems to be a good match.
Re: Chassis clips for brake/fuel lines
Posted: Wed Sep 04, 2013 9:01 pm
by pfarber
http://www.getdiscbrakes.com/rsclp37 seems to located in Pitt, Ohio. I tried their checkout feature and for 6 clips ($6) the UPS shipping was $0. I will be calling them to see what shipping would be.
I can only hope they have a sane shipping price... not the standard $9 UPS minimum shipping charge.
Re: Chassis clips for brake/fuel lines
Posted: Tue Oct 31, 2017 12:43 pm
by retro-roco
Heres a perfect match??, but on the high priced side!
https://www.opgi.com/cadillac/CE08201/
Re: Chassis clips for brake/fuel lines
Posted: Tue Oct 31, 2017 1:58 pm
by pfarber
That looks very very close.
Even at $8 each you really only need a few.
Re: Chassis clips for brake/fuel lines
Posted: Tue Oct 31, 2017 2:08 pm
by pfarber

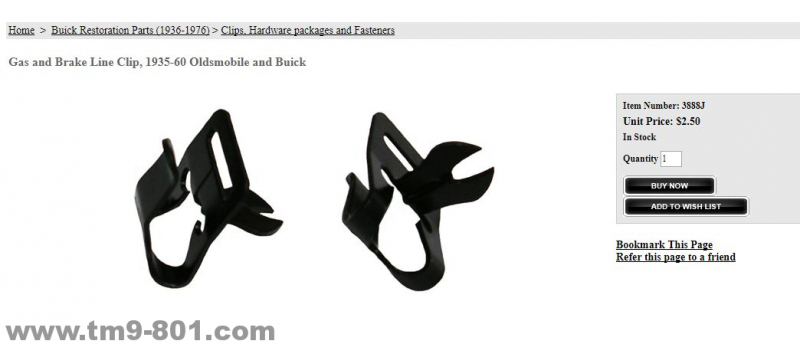

How does $2.50 each sound??
http://www.fusickautomotiveproducts.com ... mber=3888J
- clips.JPG (136.52 KiB) Viewed 42301 times
Re: Chassis clips for brake/fuel lines
Posted: Tue Oct 31, 2017 2:37 pm
by retro-roco
Good find... Ordered a dozen of them and a couple of the 1/4-5/16 fuel line clips too.
Re: Chassis clips for brake/fuel lines
Posted: Tue Oct 31, 2017 3:29 pm
by pfarber
I'm gonna grab a few also.
Now for clutch heads bolts and screws.....
Re: Chassis clips for brake/fuel lines
Posted: Tue Oct 31, 2017 4:13 pm
by retro-roco
I'll have to look though my manuals. One of the early ones had several pages of standard hardware type stuff with illustrations, sizes, part numbers, etc. Will see if I can find it.
The clutchhead screws are available from a number of vendors, including american classic truck parts, classy chevy, usa, the filling station, Jim Carter, etc.
