Posted: **Wed Dec 28, 2016 2:14 pm**

Was warm enough to work in the garage so I got to put some time into the front axle, passenger side. Only one small issue.

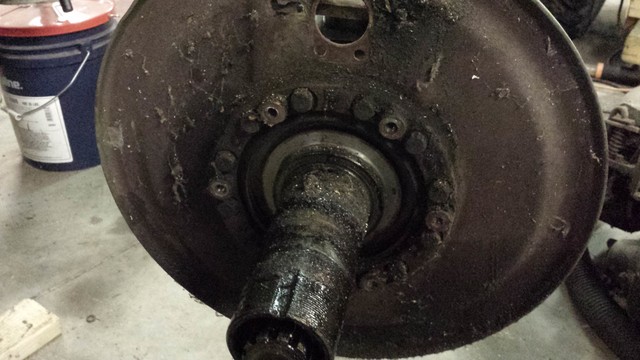

Brakes and cylinder removed, brake 'spider' also off.

: 20161227_173252.jpeg (93.29 KiB) Viewed 14143 times

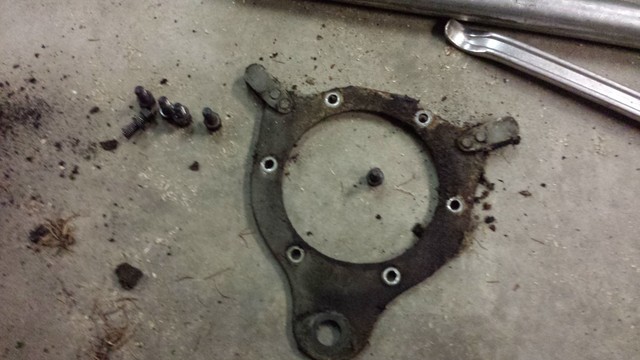

: 20161227_173256.jpeg (86.02 KiB) Viewed 14143 times

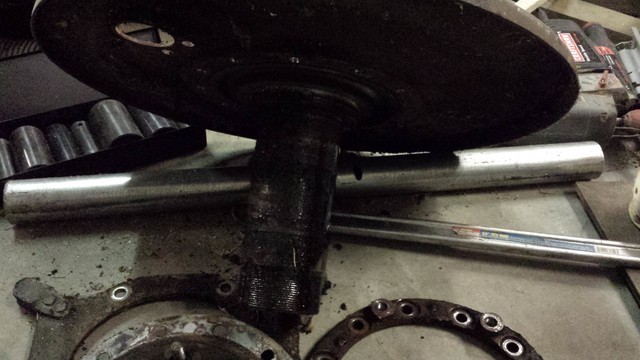

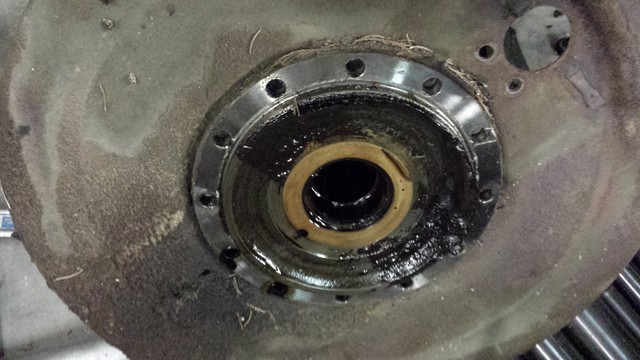

Next are the brake plate bolts and off it comes... look at that machined surface!!

: 20161227_173639.jpeg (58.93 KiB) Viewed 14142 times

: 20161227_173644.jpeg (98 KiB) Viewed 14143 times

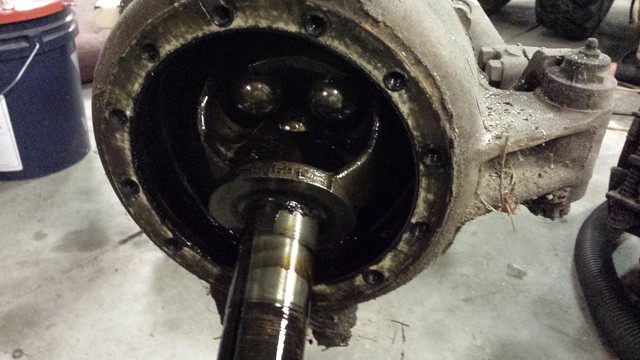

Looking into the hub, business end of the CV joint/stub axle.

: 20161227_173634.jpg_rot.jpeg (63.3 KiB) Viewed 14143 times

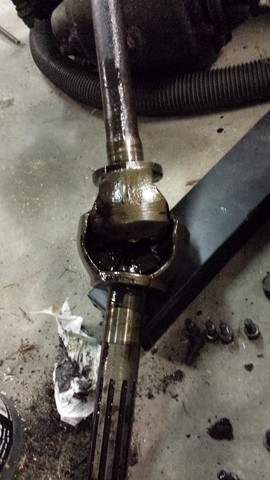

Look at the beefy old axle!

: 20161227_173915.jpeg (38.52 KiB) Viewed 14142 times

Posted: **Wed Dec 28, 2016 2:20 pm**

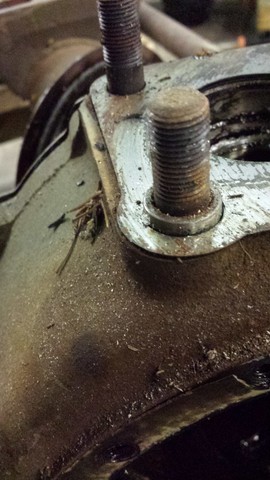

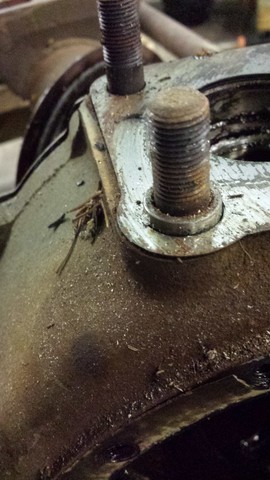

This is where the only issue arose... a good nick in one of the kingpin cap bolts.
Took a file and filed it down so the shims would come off.

: 20161227_174148.jpeg (41.2 KiB) Viewed 14142 times

Disconnect the tie rod. The pin was tight and it doesn't seem that there was any grease in there... so a good cleaning of the grease grove is in order when its reassembled.

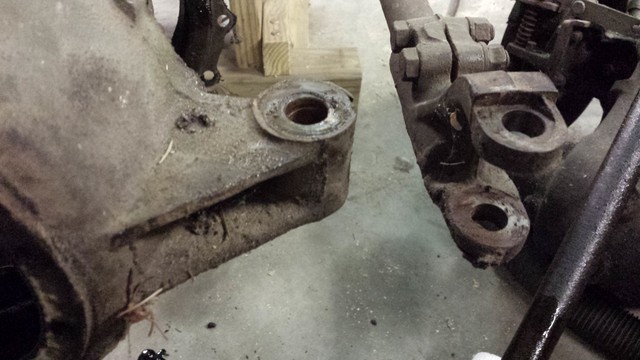

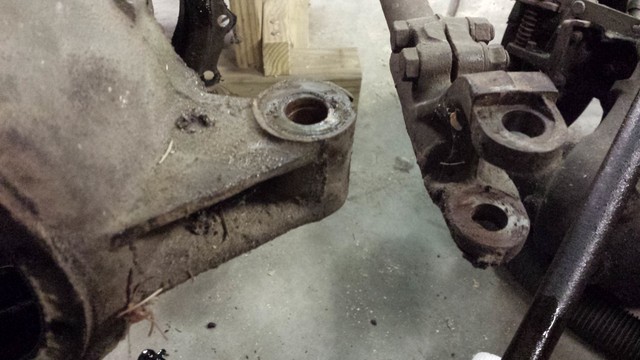

: 20161227_180101.jpeg (90.21 KiB) Viewed 14142 times

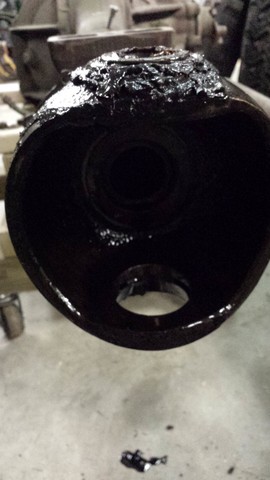

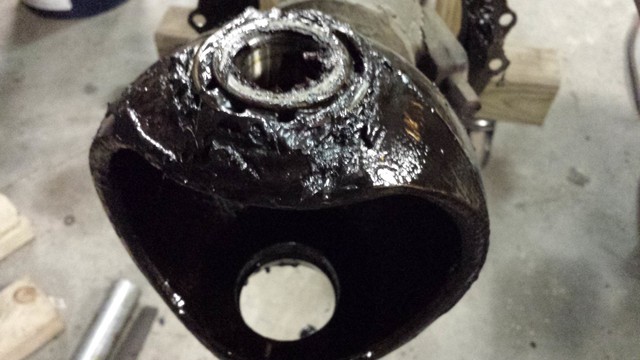

Hub off looking at the knuckle.

: 20161227_180333.jpeg (28.75 KiB) Viewed 14142 times

: 20161227_180330.jpeg (55.17 KiB) Viewed 14142 times

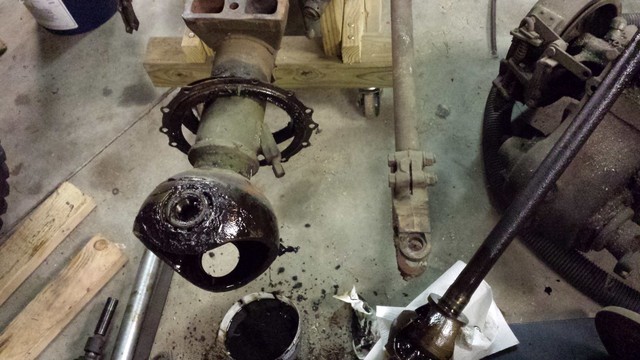

: 20161227_180338.jpeg (69.92 KiB) Viewed 14142 times

All in all took about an hour to tear down going slow and mostly playing with the dogs than working. Still need to take the bearing out and check them.. if they are good they are going back in. Inner seals will stay, knuckle felt will be replaced.. but all in all everything (except the one stud) is in good shape so far.
